Algodue Power Meters

Class A Power Quality Meters and energy monitoring solutions with MID certification. Advanced power analysis, harmonics measurement, and SCADA integration for industrial and commercial applications.

Visit Algodue Request Information

PRODUCT LINE

Class A Power Quality Meters

Professional power quality analyzers with comprehensive measurement capabilities and remote monitoring.

PQM4000
PQM4000d

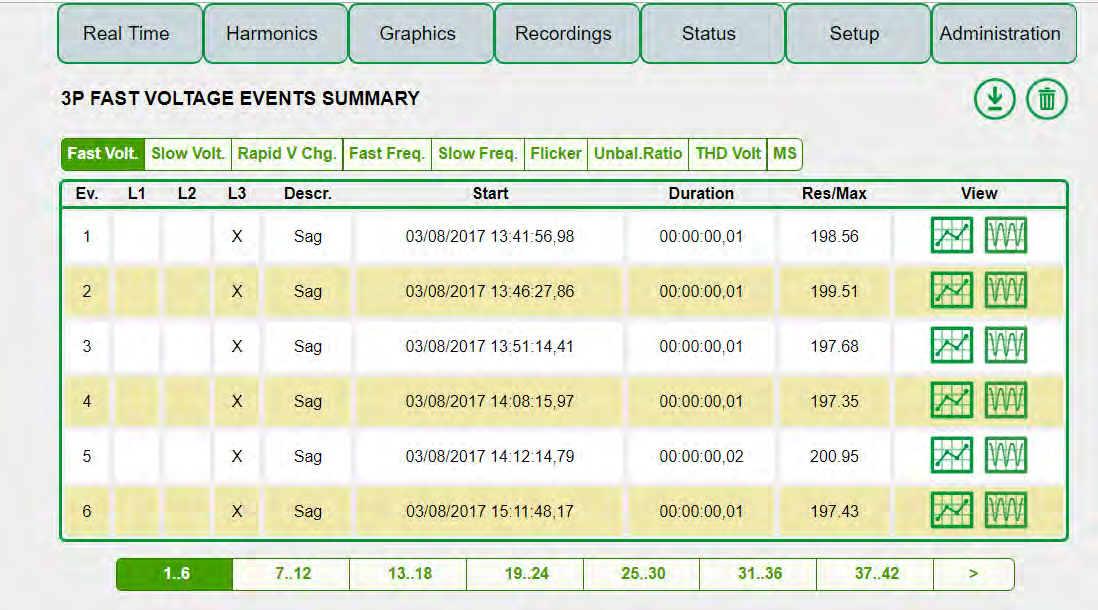

PQM4000 Report

PQM4000 Series

Download Presentation  |  Algodue Link

Features:
  • Quality analysis according to Class A EN61000-4-30: 2015
  • Measurements of harmonics and interharmonics according to EN61000-4-7
  • Flicker measurement according to EN61000-4-15 and IEEE1453
  • Transients capturing
  • Communication, management and monitoring measuring remotely via ETHERNET
  • High data recording capacity 16GB
  • Additional channels compared to other three phase devices on the market: up to 9 channels, 4 voltage inputs and 5 current inputs
  • Touchscreen for easy at site configuration and usage
PQM3000

PQM3000 Series

Class A rack 19" power quality analyzer for CTs.

Algodue Link

Features:
  • Additional voltage and current measurement channels in comparison with other standard three-phase devices
  • Simultaneous recording of events, Min/Avg/Max LOG and energy counters
  • Several possibilities for instrument data transmission: Ethernet, Modbus TCP, 4G network
  • User-friendly instrument web interface with multilingual pages

ENERGY METERS

Power Meters List

MID-certified energy meters for billing and monitoring with SCADA integration capabilities.

UEC40-2C
UEC80-2A
UEM Series

UEM Series

Features:
  • Built-in port for remote management and connection to SCADA or monitoring systems
  • Modbus RS-485 (RTU)/TCP or M-Bus protocols
  • Suitable for billing purposes
  • Three phase 1/5A CT or three phase 80A direct connection
  • Single phase 40A or 80A direct connection
  • Measurement of active, reactive and apparent energy on 4 quadrants
  • MID Certification
UEC40-2C
UEC80-2A
UEC Series

UEC Series

Features:
  • Suitable for billing purposes
  • Three phase 1/5A CT or three phase 80A direct connection
  • Single phase 40A or 80A direct connection
  • Measurement of active, reactive and apparent energy on 4 quadrants
  • MID Certification
UPM309

UPM Series

Features:
  • Panel mount and DIN rail mount options
  • Suitable for billing purposes
  • Three phase 1/5A CT or Rogowski coils
  • Modbus RS-485 (RTU)/TCP or M-Bus protocols
  • Connect with PC software to generate consumption profiles, recorded values, trends, alarms / events report, critical values and costs calculations
UPM209RGW
UPM Smart Kit

UPM Series with Smart Kit

Features:
  • Panel mount and DIN rail mount options
  • 3 Rogowski coils for measuring from few A to 20KA
  • Very fast installation for existing plants
  • Suitable for billing purposes
  • Three phase 1/5A CT or Rogowski coils
  • Modbus RS-485 (RTU)/TCP or M-Bus protocols
  • Connect with PC software to generate consumption profiles, recorded values, trends, alarms / events report, critical values and costs calculations
