PRODUCT RANGE
Picobox Products
Environmental monitoring systems and Modbus RTU I/O controllers for industrial applications.

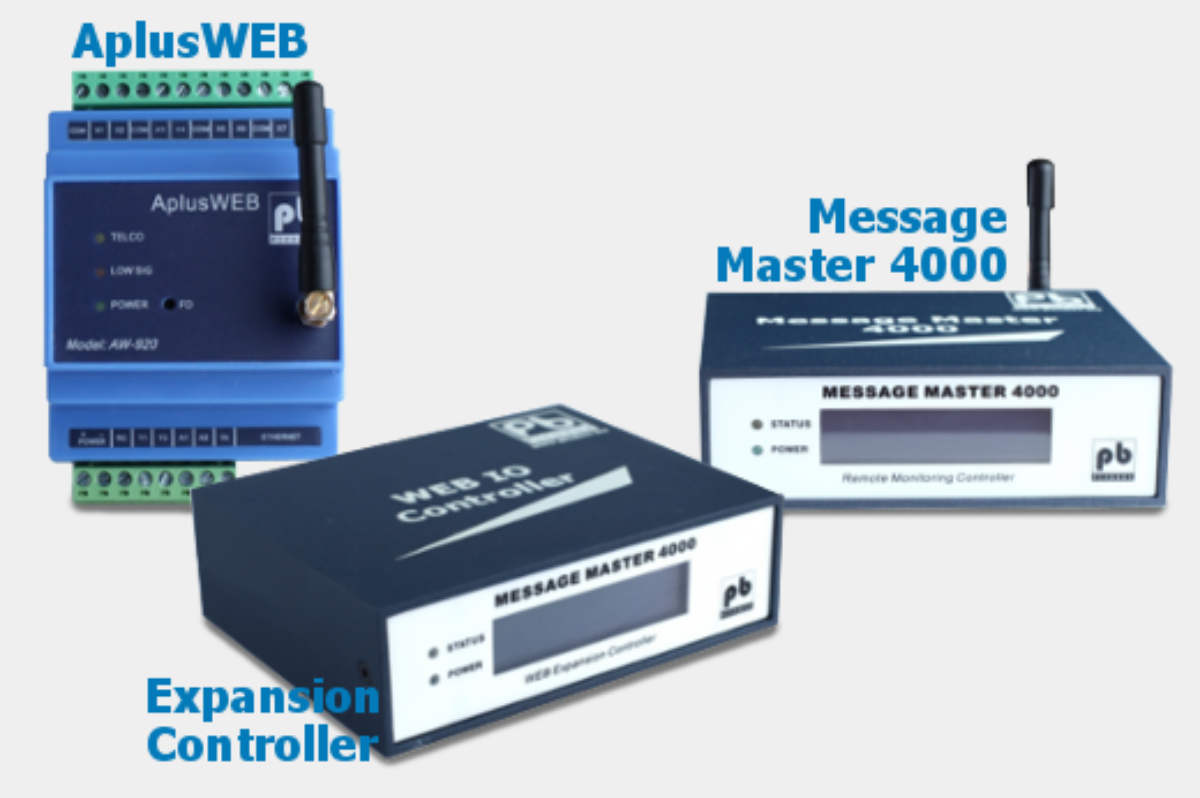

Environmental Monitoring Systems (EMS)
These standalone units are the bedrock of Picobox alarm notification systems.
| Model | Digital Inputs | Digital Outputs | Analog Inputs | Builtin Modem | Web Enabled | GPRS | LCD | Phone Groups | Conectivity | Detail | Brochure |
|---|---|---|---|---|---|---|---|---|---|---|---|
| APlus Web | 8 | 2 | 2 | Yes | Yes | No | No | 1 Operation, 1 Forward | Web, E-Mail, SMS | No event logging, No output logic control | brochure |
| APlus Web II | 8 | 2 | 2 | Yes | Yes | No | Yes | 1 Operation, 1 Forward | Web, E-Mail, SMS | Output logic control | brochure |

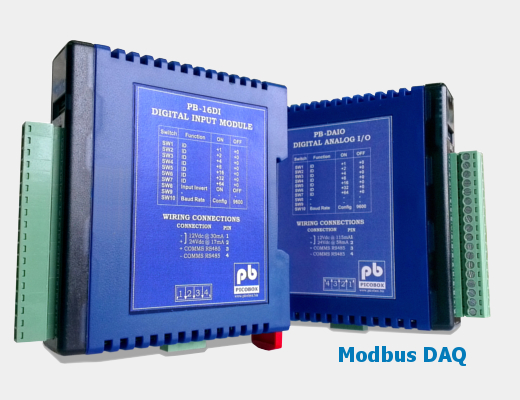

Modbus RTU DAQ I/O
I/O controllers to read inputs from a large number of points, using Modbus RTU protocol. These devices can be used independently of Picobox monitoring products.
For detailed information about these products please visit Picobox Modbus DAQ
All devices operate on 12VDC, please click on 'detail' button for more information about each device.
| Model | Digital Inputs | Digital Outputs | Analog Inputs | Analog Outputs | Counters | RTD | TC | Status Indication | Detail |
|---|---|---|---|---|---|---|---|---|---|
| PB-16DI | 16 | 0 | 0 | 0 | 16, 32bit, 1KHz, up/down | 0 | 0 | LED / channel | detail |
| PB-16DO | 0 | 16 (open collector) | 0 | 0 | 0 | 0 | 0 | LED / channel | detail |
| PB-4RO | 0 | 4 (relay form-C) | 0 | 0 | 0 | 0 | 0 | LED / channel | detail |
| PB-8DIO | 8 | 8 (open collector) | 0 | 0 | 8, 32bit, 1KHz, up/down | 0 | 0 | LED / channel | detail |
| PB-DAIO | 4 | 2 (open collector) | 2 (4mA - 20mA / 0V - 10V, DC) | 1 (4mA - 20mA, 2V - 10V, DC) | 4 (32bit, 50Hz) | 2 (2 / 3 wire, PT100/Ni120/PT1000, 0.1°C) | 0 | - | detail |
| PB-6RTD | 0 | 0 | 0 | 0 | 0 | 6 (2 / 3 wire, check details) | 0 | - | detail |
| PB-8TC | 0 | 0 | 0 | 0 | 0 | 0 | 8 (J,K,E... check details) | - | detail |
| PB-8AII | 0 | 0 | 8 (single ended, 0/4mA - 20mA, 12bit) | 0 | 0 | 0 | 0 | - | detail |
